Automatic font scaling

MARK Display automatically decreases the font size or breaks text into several lines to fit the text into the template fields. Headers of template fields are never scaled

MARK Display always tries to use the maximum possible font size for the template field's content. If that does not work a line-break is used before the font is scaled down to fit the screen. This ensures that the largest possible font is used and the template size is utilized as good as possible. For line-breaks it is first tried to break on a space character. If the text does not contain a space, it is broken after the maximum amount of characters.

DISPLAY_SAMPLE

General information

MARK Display supports six font size:

  • SUPER BIG font size - 60px
  • BIG font size - 34px
  • NORMAL font size - 26px
  • SMALL font size- 22px
  • TINY font size - 16px

The initial values of the font size for templates can be found here.

Currently the following templates support auto-scaling:

  • PG2
  • PG3

Examples

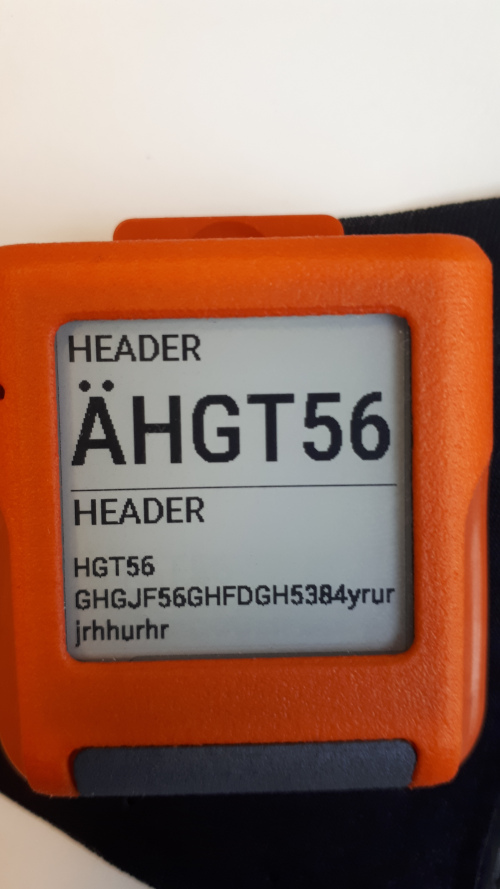

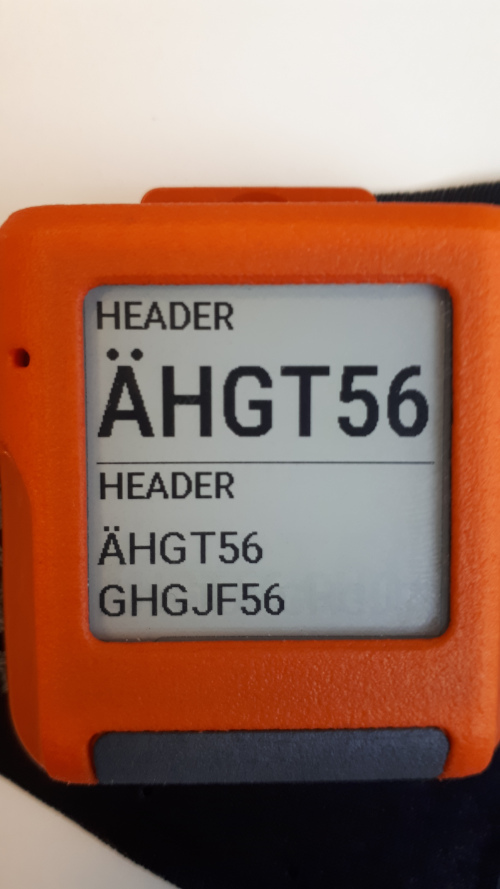

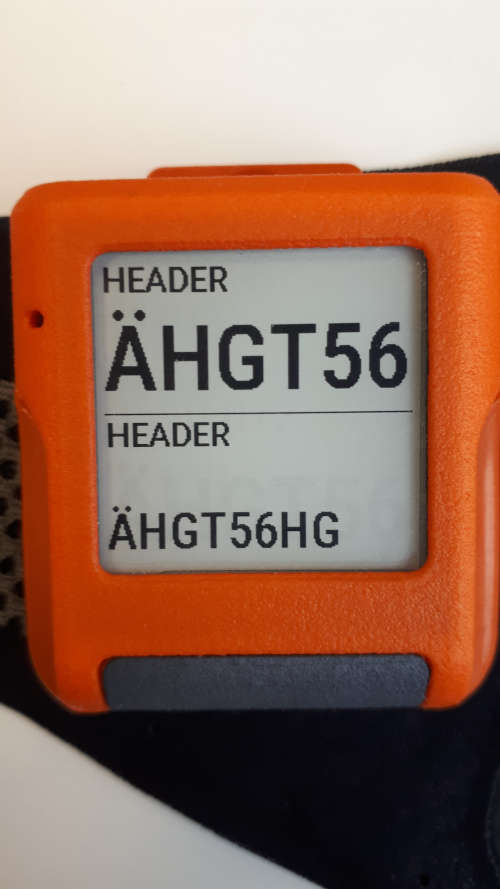

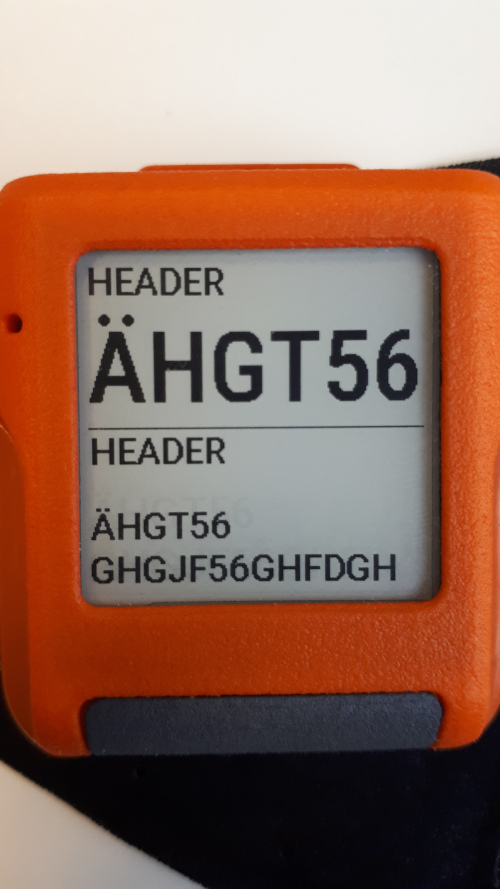

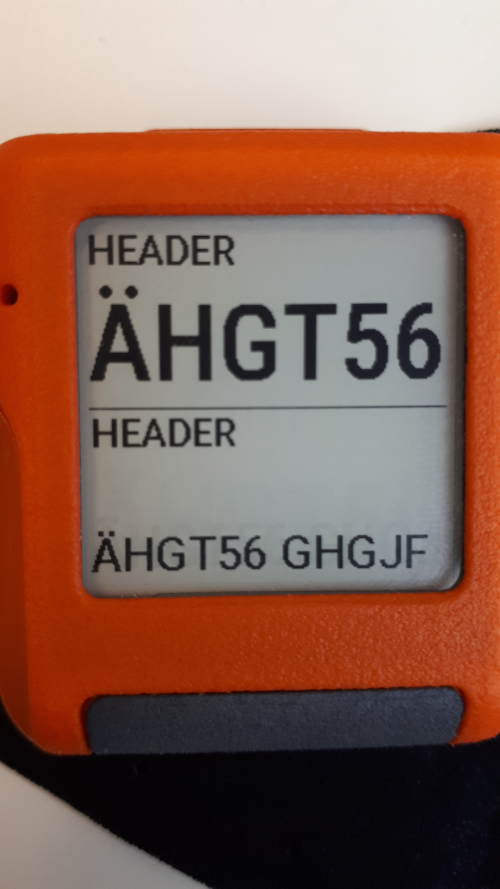

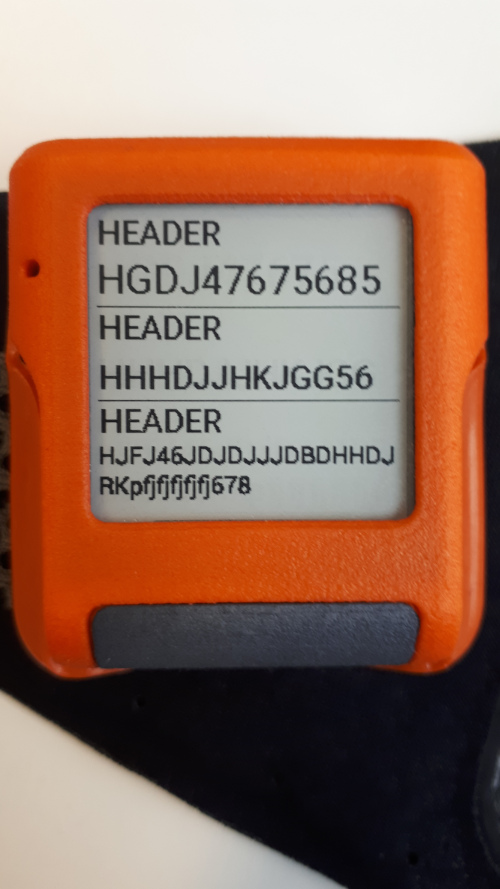

Template Fields Font sizes Example
First row


Second row		 SUPER BIG


BIG		 DISPLAY_SAMPLE
First row


Second row		 SUPER BIG


NORMAL		 DISPLAY_SAMPLE
First row


Second row		 SUPER BIG


NORMAL with line break after space		 DISPLAY_SAMPLE
First row


Second row		 SUPER BIG


NORMAL with line break after space		 DISPLAY_SAMPLE
First row


Second row		 SUPER BIG


TINY with line break after max character length		 DISPLAY_SAMPLE
First row


Second row


Third row		 NORMAL


SMALL


TINY		 DISPLAY_SAMPLE
